Casio LED-30 – Restoration

Some projects are smooth. A little polish here, a new battery there, and you’re done. This wasn’t one of those projects.

I picked up a Casio LED-30 from India for a price so low it felt like a gamble. The LED-30 is one of Casio’s early LED digitals, built before LCD technology took over the world. These models don’t pop up often, and when they do, they’re usually in rough shape. This one was no exception.

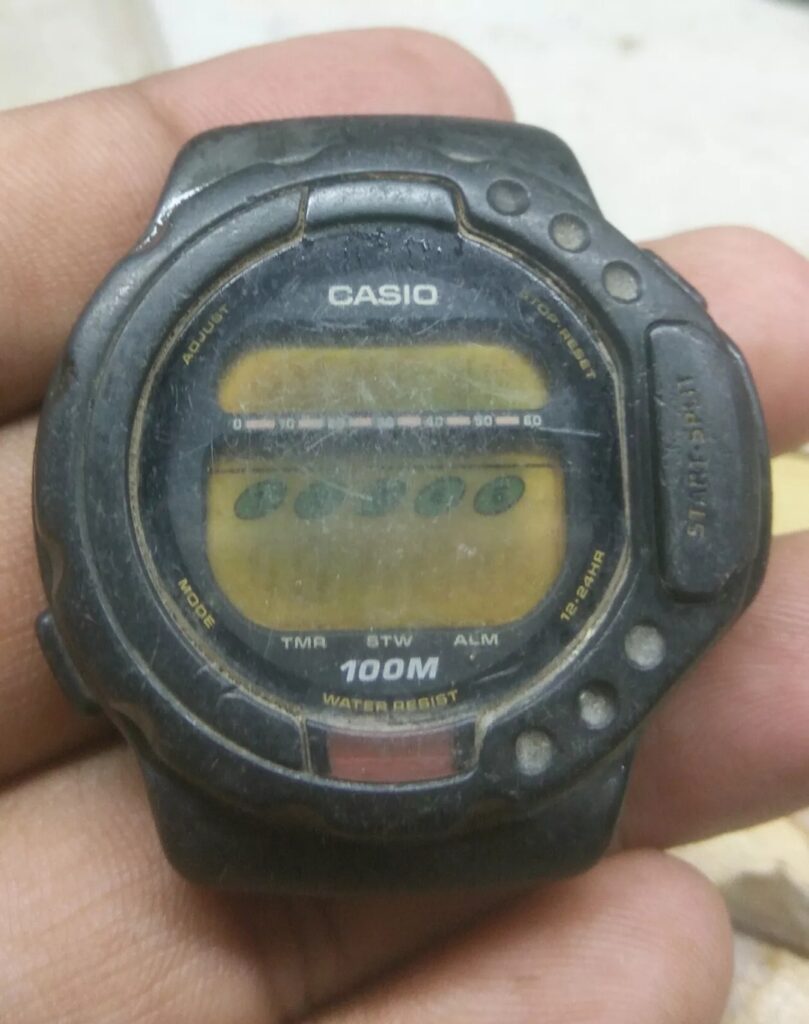

When the watch arrived, the display was completely gone: delaminated, unreadable, and basically dead. The case was scratched, the crystal had lost its clarity, and the lugs were broken. Honestly, it looked more like a spare-parts donor than a watch that could ever be worn again. But I decided to try anyway. Part stubbornness, part curiosity. After all, half the fun in restoring vintage Casios is seeing just how far you can push a rescue.

What was the condition of the watch when it arrived?

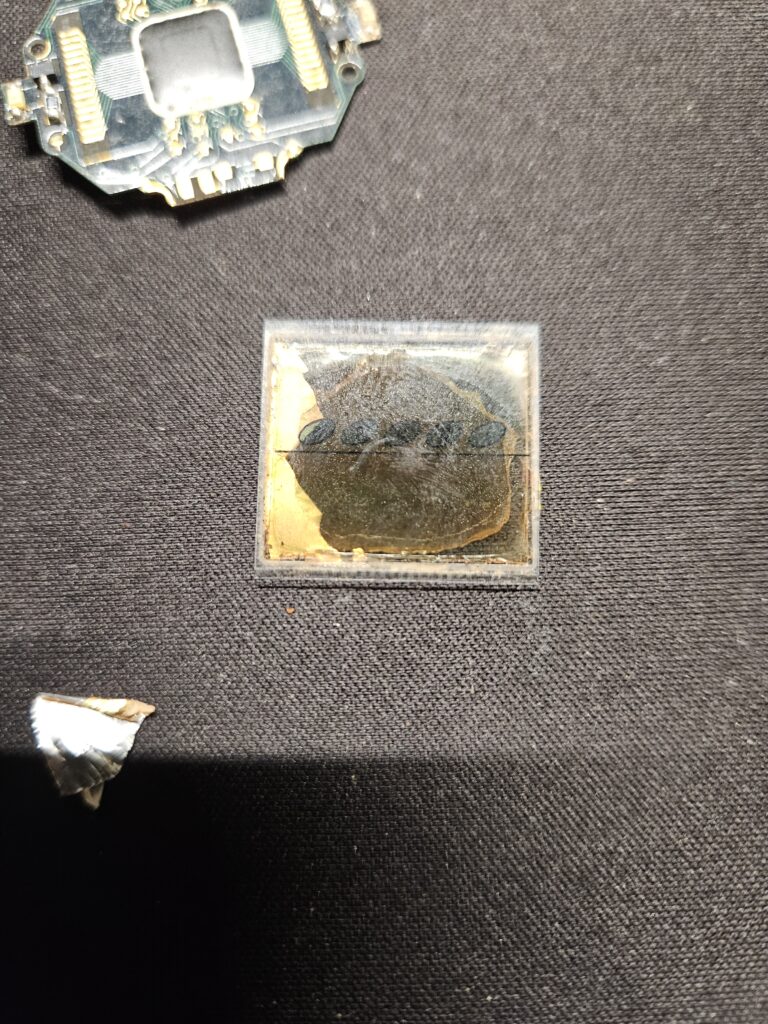

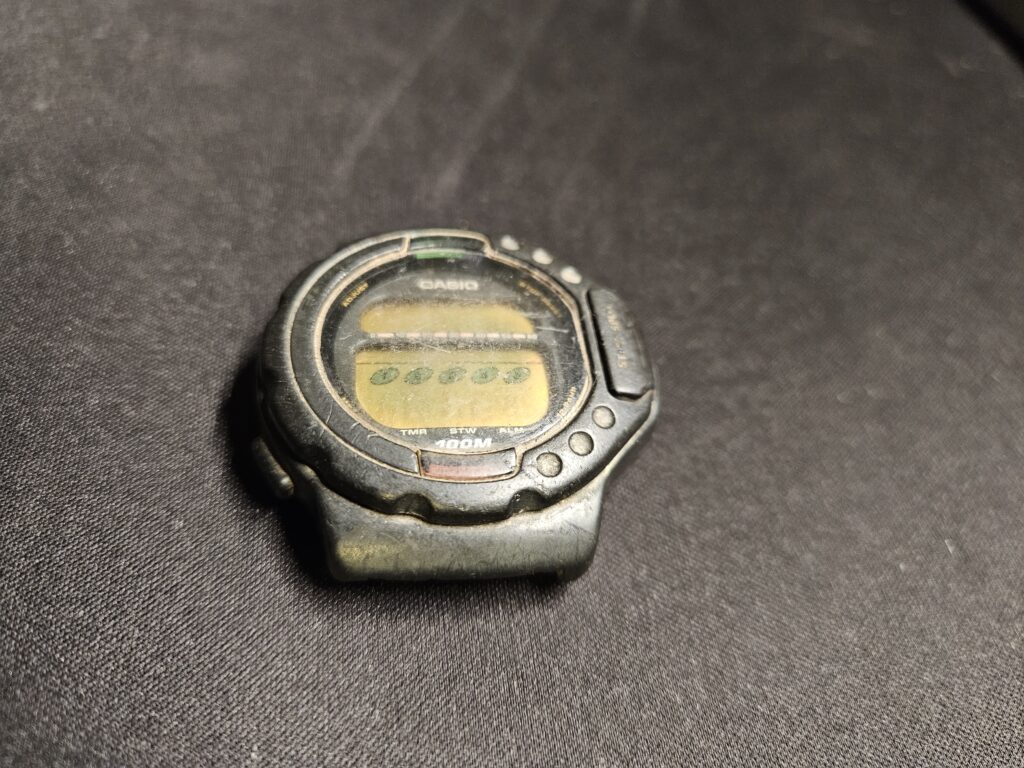

When I first unboxed the Casio LED-30, it was clear this wasn’t going to be a quick win. The display was completely shot: it had started to delaminate and was unreadable. No digits, no glow, nothing.

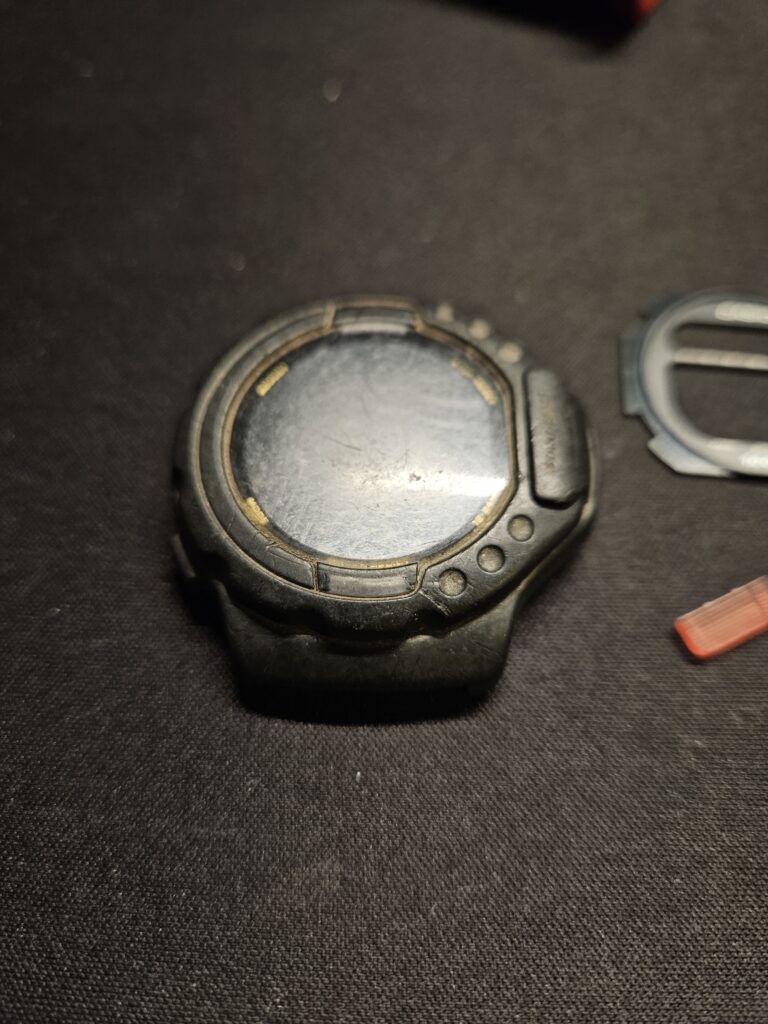

The case had heavy wear from decades of use. Scratches, dirt buildup, and dull resin edges made it look tired. The crystal was hazy, with enough surface scratches to kill the shine.

Worse yet, both plastic lugs were broken, which meant the watch couldn’t even hold a strap anymore. For many collectors, that’s the dealbreaker—no lugs, no watch.

At this point, most people would write it off as a lost cause or keep it only as a display piece. But I wanted to see if I could bring it back. After all, if a Casio survived 40+ years, it deserved at least one more chance.

How did the restoration process go?

Step 1: Replacing the display

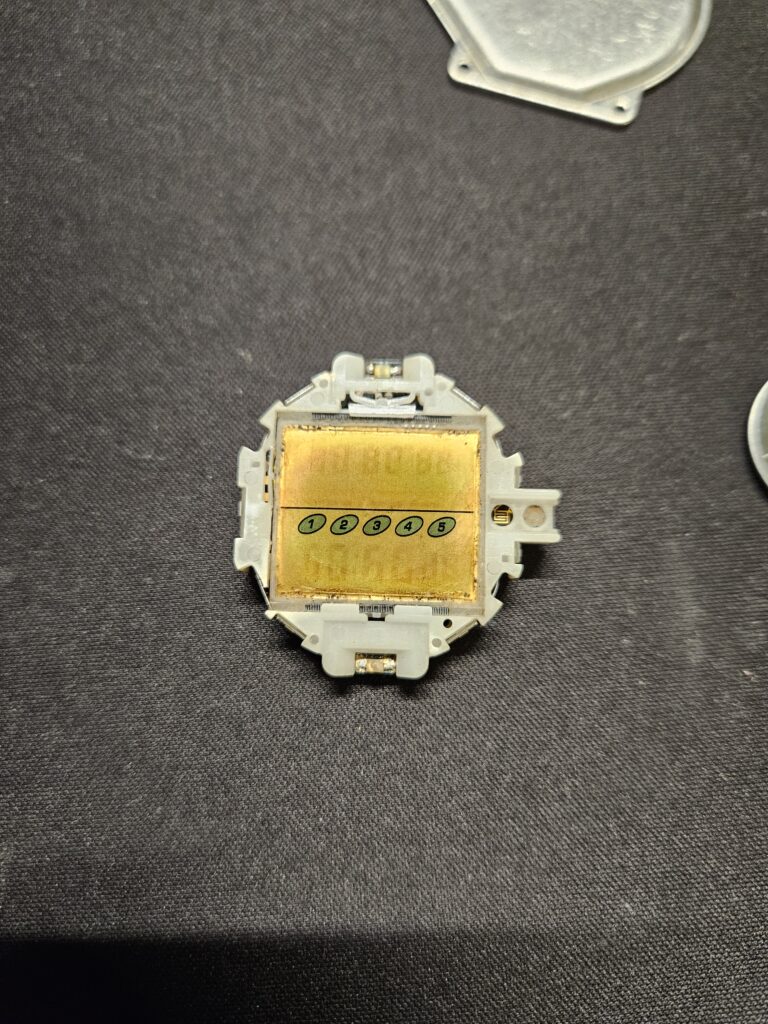

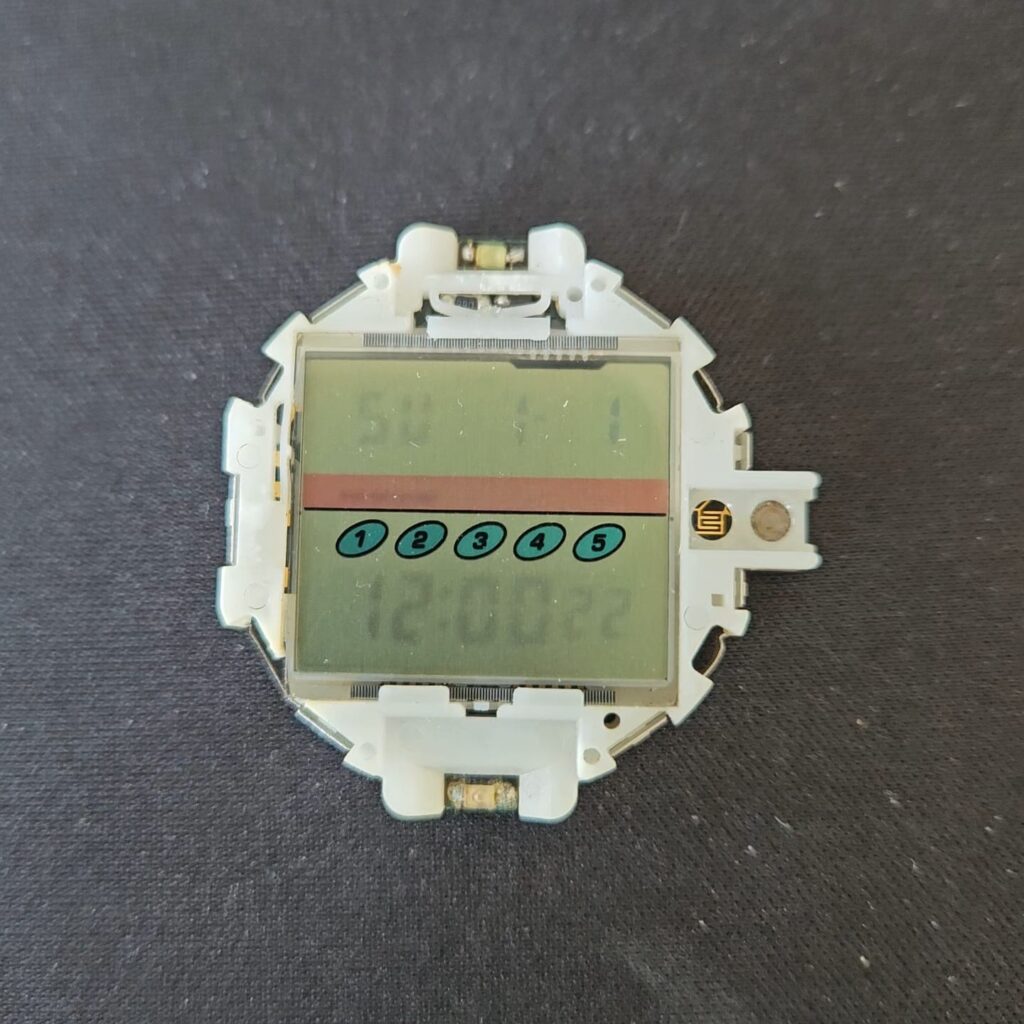

The first challenge was the dead display. Without a working screen, the LED-30 was just a fancy paperweight. I managed to track down a replacement display on eBay, which already felt like a lucky break—parts for these old LED models don’t exactly grow on trees.

Swapping the display was straightforward: open the case, carefully disconnect the old unit, and put the new one in. When I powered it up, I expected to see those classic glowing digits. Instead… chaos.

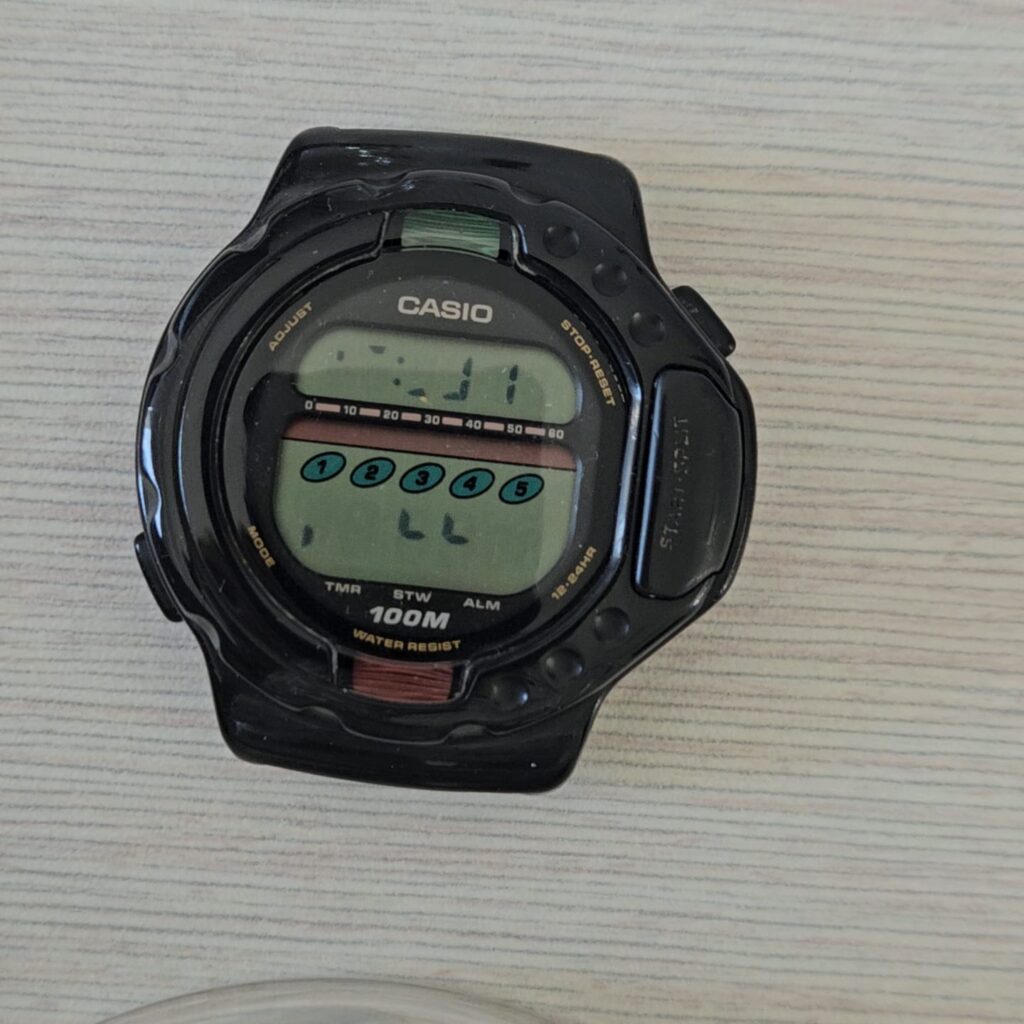

The screen lit up, but it showed random characters instead of numbers. After a few seconds, the watch would shut itself off. Pressing the buttons made things worse—the entire display would go empty.

At that moment, I knew the problem wasn’t just the display. Something deeper was wrong inside the module.

Step 2: Troubleshooting the module

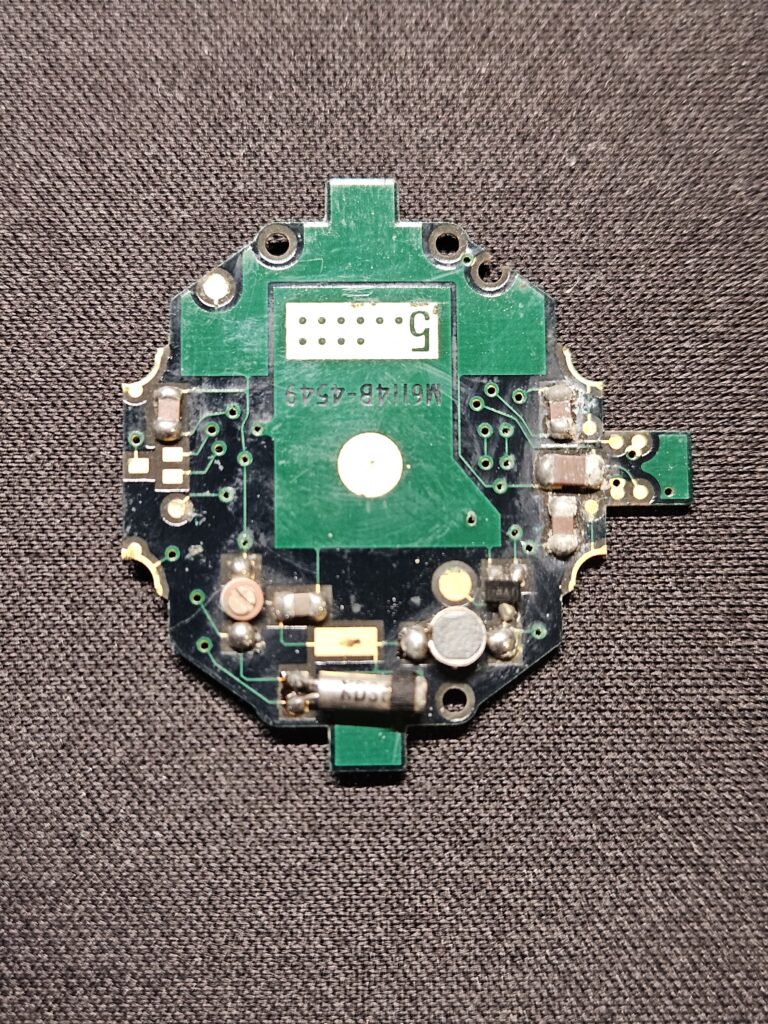

Since the new display wasn’t solving the issue, I turned my attention to the PCB. My first suspect was the quartz crystal—if it’s unstable, the whole timing circuit can go haywire. I swapped it out for a fresh one. No change.

Next, I replaced the small ceramic capacitors that stabilize the oscillator. Again, no improvement. The symptoms stayed the same: random characters, sudden shutdowns, and total blackout when pressing the buttons.

At this point, it was clear the original module was beyond saving. For collectors, this is the moment of truth.

I wasn’t ready to give up yet.

Step 3: Finding a donor watch

With the original module refusing to cooperate, I had to change strategy. The only way forward was to find another Casio LED-30 and use it as a donor. After some searching, I managed to buy a second one in much better condition.

I carefully swapped the working PCB from the donor into my original watch. That way, I could keep the case that I had planned to restore while finally getting a stable, working module inside.

It felt a bit like a heart transplant for a vintage Casio. Not ideal for purists, but the only way to bring this LED-30 back to life.

Step 4: Restoring the case and glass

With the electronics sorted, I turned my attention to the original case. Years of use had left it scratched and dull, so I started with a thorough clean. I used a soft brush and isopropyl alcohol to remove old dirt packed around the buttons and edges.

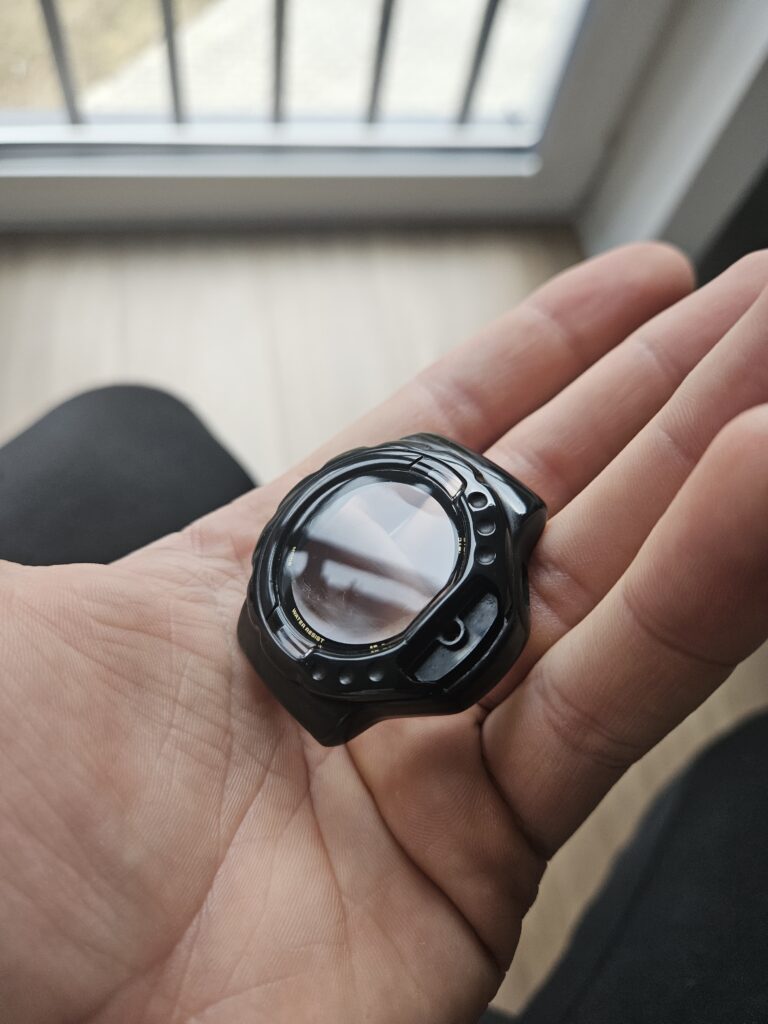

Next came polishing the glass. The crystal was hazy and full of surface marks. I worked through fine-grit sandpaper, then finished with polishing paste until the clarity returned. Seeing the glow of the LED digits through a clean crystal again was incredibly satisfying.

The case itself also needed some love. I carefully polished the resin to smooth out scratches without over-thinning the material. It took patience, but slowly the original shine came back.

At this stage, the LED-30 was starting to look like a watch again, not just a project in pieces.

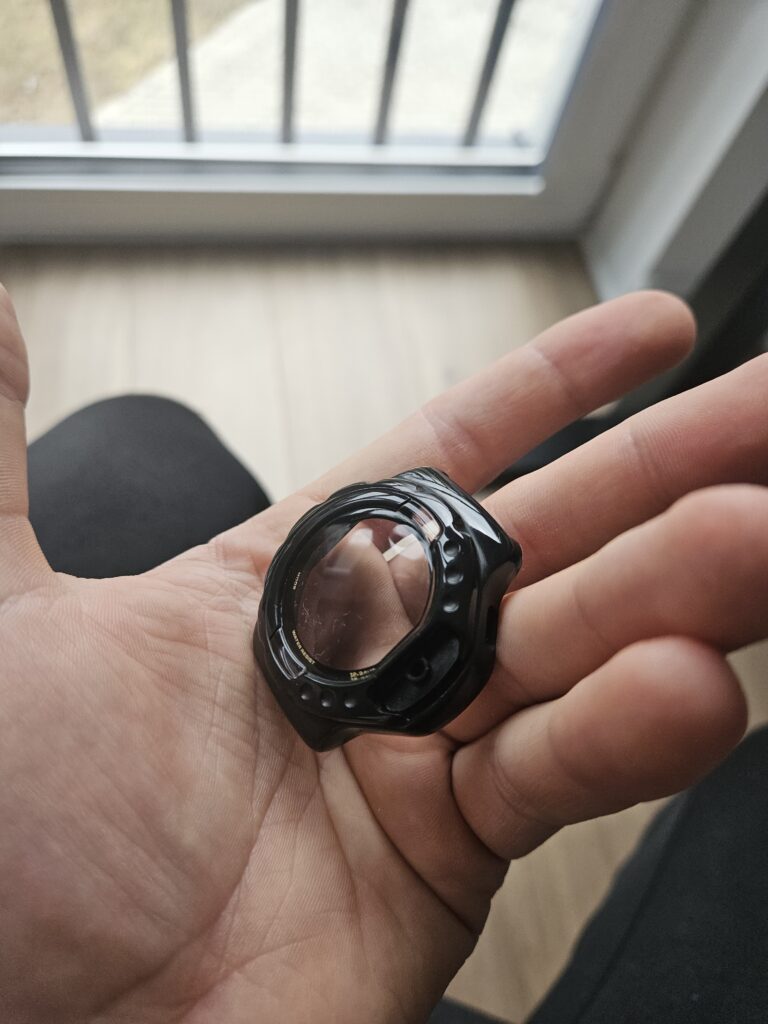

Step 5: Rebuilding the broken lugs

The lugs were completely broken, which meant the watch couldn’t hold a strap. For many collectors, that’s the point where a case becomes useless. But I wanted this LED-30 to be wearable again.

I used a classic trick: baking soda mixed with super glue. The soda hardens the glue instantly, creating a strong, sandable filler. First, I carefully rebuilt the missing sections of both lugs layer by layer. Once cured, I filed the shape back to match the original profile.

To finish, I painted the repaired area with black nail polish, which blended surprisingly well with the case. A final pass with fine sandpaper smoothed everything down so the lugs looked natural.

Now the watch could finally take a strap again. It was one of the most time-consuming parts of the whole project, but also the most rewarding. Without strong lugs, even a working LED-30 would have stayed in a drawer.

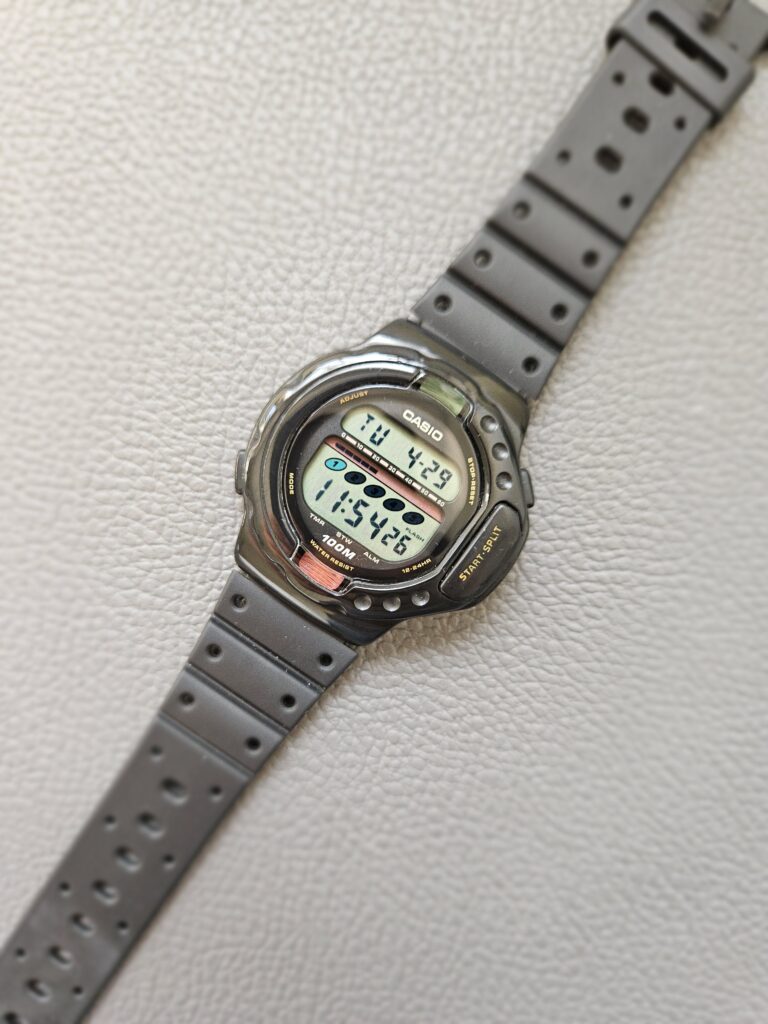

The result of the restoration

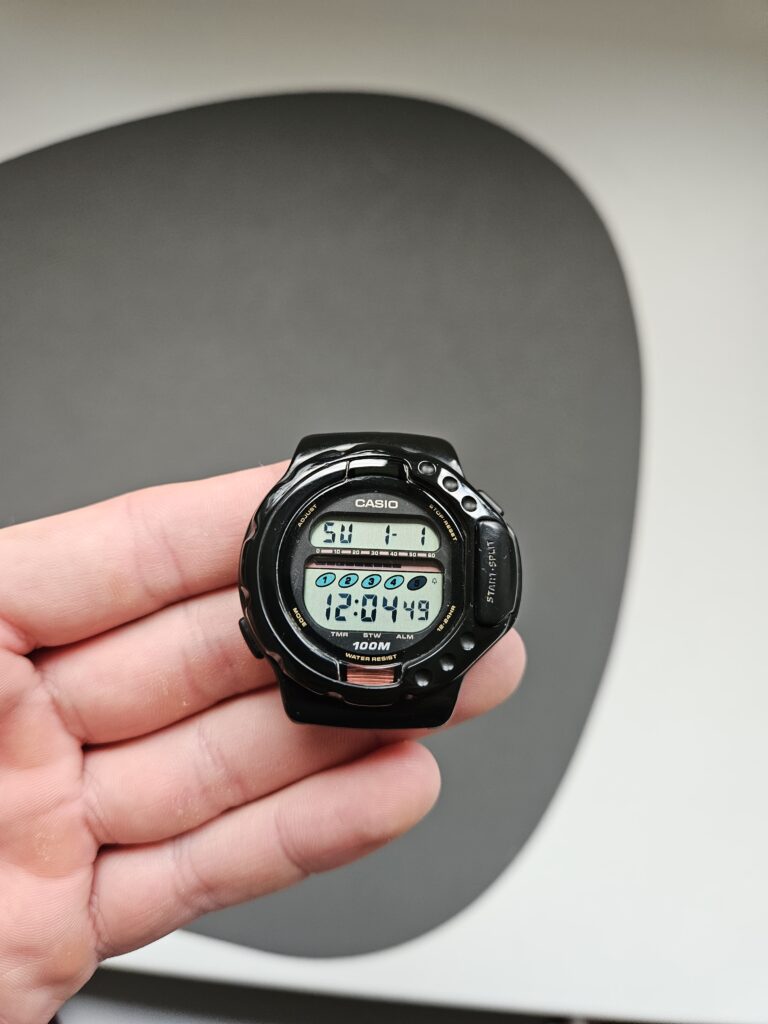

After hours of work, the Casio LED-30 was finally back in shape. The donor PCB brought stable function, the case was cleaned and polished, the crystal clear again, and the lugs strong enough to hold a strap. Seeing those glowing red digits shine through a restored crystal felt like a small victory.

This was without doubt my most difficult project so far. Not because of sanding or polishing, but because the original module couldn’t be saved. For a collector, that’s always a little painful. Sometimes no amount of soldering or part-swapping will bring a vintage Casio back. That’s part of the game we play when rescuing 40-year-old electronics.

Still, I’m proud of the outcome. The watch is functional, wearable, and has character. It might not be 100% original inside, but it has a second life on the wrist instead of gathering dust. And for me, that’s what restoration is about.

This LED-30 will stay in my personal collection as a reminder that not every battle is won perfectly, but every effort teaches you something new.
